Ref. 1303

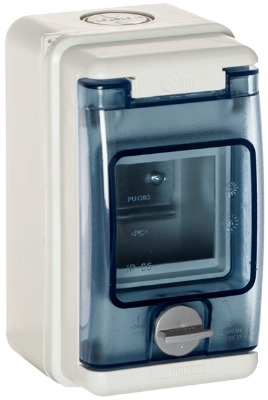

Industrial distribution box of 3 modules.
Industrial distribution box of 3 modules.IP65. IK08. External dimensions 85 x 155 x 100 mm. Lateral, upper and lower pre-cut. stainless steel ultra fast closing screws.
Common applications: Industrial environments (factories, warehouses, etc.)
Add to my downloads
Added to my downloads
Add to my downloads
Added to my downloads
Complementary products
Features
Enclosure type Distribution
Installation method Surface
Use Industrial
Location type Exterior and interior
No. Modules (18 mm) 3
Modules per row 3
Metallic DIN profile Yes

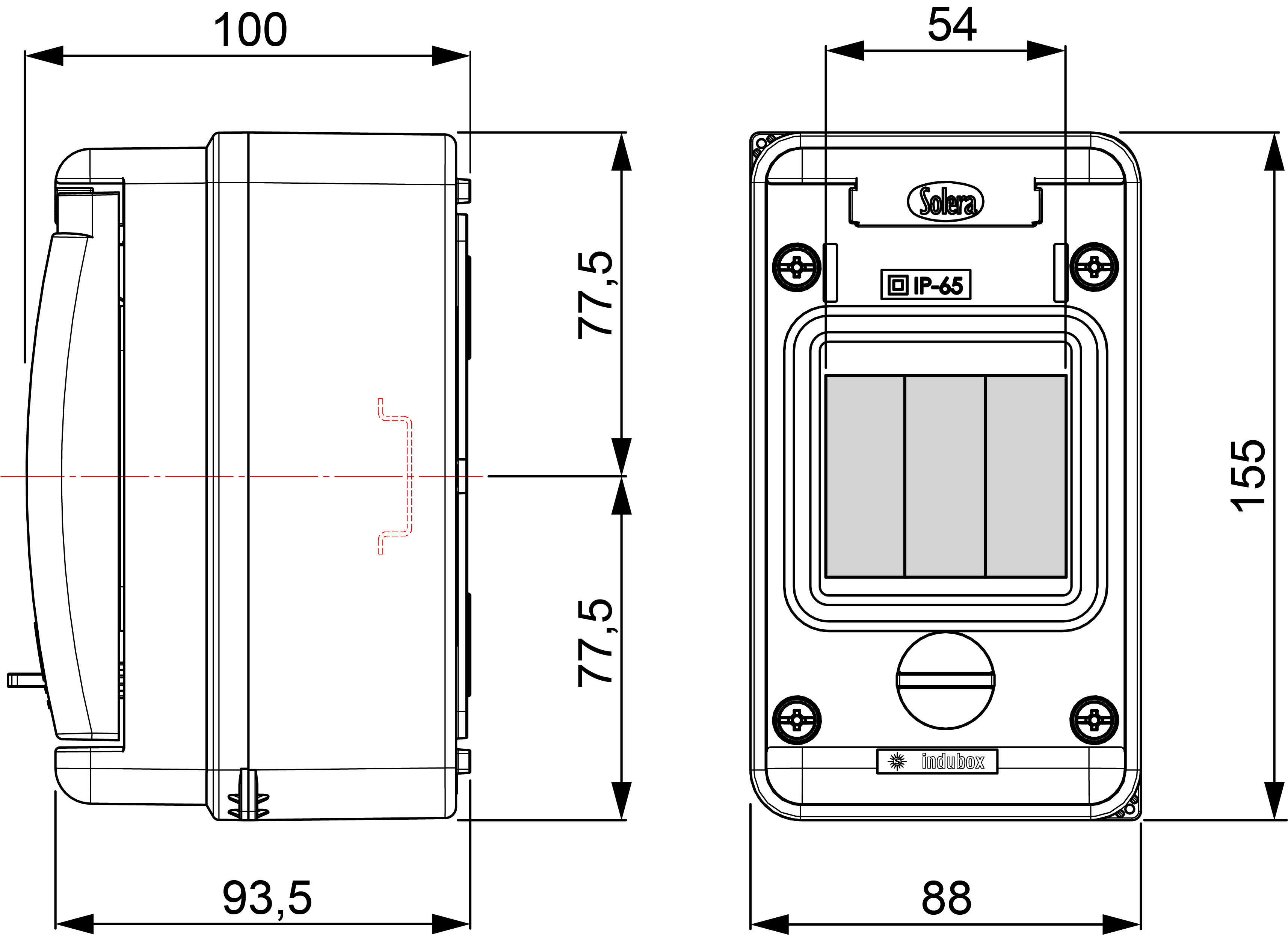

Dimensions outside (mm) (width x height x depth) 85x155x100
Case material Insulation
Case color Grey (RAL7035)
Cap color Grey (RAL 7035)
Door color Fume
Ticket type With centricity points.
Sealable Yes
Lid closure system Ultra-fast metal screw
Door closing system Handle
Possibility of mounting strips Yes (not included)
Possibility of mounting with key / padlock No
Possibility of putting lock Key
Possibility of mounting DIN rail Yes (included)
Technical data and regulation
Technical data
Protection Degree (IP) IP65
Protection Degree (IK) IK08
Impact shock resistance Strong
Insulation class Class II
Fire resistance (GWEPT) 650 ºC
Heat resistance (Ball pressure) 70 ºC
UV resistance Yes
Free of halogens Yes
Suitable for saline environments Yes
Regulations
CE marking Yes
UK marking Yes
CMim marking Yes
According to Regulations UNE-EN 61439-1: 2012, UNE-EN 61439-3: 2012, UNE-EN 61439-4: 2013
According to Regulations UNE/EN UNE-EN 62208:2012
According to REBT Yes
According to European Directive 2014/35 / EU. Low voltage directive Yes
Sustainability
According to European Directive 2011/65/UE (RoHS) The Directive 2011/65/EU (RoHS II) is not applicable as it does not correspond to the definition of Electrical and Electronical Equipment (EEE) as per article 3.1
According to European Directive 2012/19/UE (RAEE2) Not applicable because it does not meet the definition of Electrical and Electronic Equipment (EEE) as described in Article 3.1(a) of Directive 2012/19/EU (WEEE II).
Logistics and packaging
Unit EAN code 8423220057043
EAN code container 8423220057043
EAN code packaging 18423220057040
Units packaging 1
Units carton 50
Pallet Units 750
Packaging Measurements cm 16x11,5x9,7
Packaging Measures cm 59,5x49x37,5
Unit weight (g) 327
Container Weight (Kg) 0,43
Packaging Weight (Kg) 22,25
Tariff code 85371098
