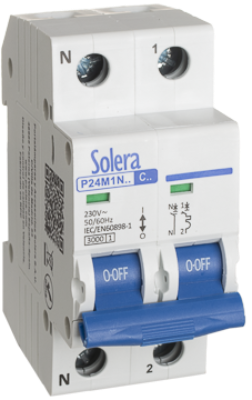

Ref. P24M1N20
Miniature Circuit Breaker 1P+N, 20A. Breaking capacity 3kA. C curve.
Miniature Circuit Breaker 1P+N, 20A. Breaking capacity 3kA. C curve.2 modules. 230Vac (50 - 60 Hz).
Common applications: Indoor domestic / tertiary environment (Interior of home, offices, shops, etc.)
Add to my downloads
Added to my downloads
Add to my downloads
Added to my downloads
Complementary products
Features
Mechanical durability 20.000 cycles
Protection type (modular) Magnetothermic switch
No. of poles 1P + N
Modules (18 mm) 2
Neutral position Left
Network type Alternating current (ac)
Trigger curve C
Short circuit capacity 3 kA
Fixation 35mm DIN rail
Connection capacity Up to 25 mm²
Possibility of using pin type combs Yes
Nominal current 20A
Nominal voltage 230 Vca - (50/60 Hz)
Technical data and regulation
Technical data
Fire resistance (GWEPT) 960 ºC
Ambient operating temperature -5 ºC ; +40 ºC
Regulations
CE marking Yes
CMim marking Yes
According to Regulations UNE/EN UNE-EN 60898-1:2020 (versión corregida
Febrero 2024).
Febrero 2024).
According to REBT Yes
According to European Directive 2014/35 / EU. Low voltage directive Yes
Sustainability
According to European Directive 2011/65/UE (RoHS) Yes
According to European Directive 2012/19/UE (RAEE2) Yes
According to Regulations (RoHS) UNE-EN IEC 63000:2022
Logistics and packaging
Unit EAN code 8423220274099
EAN code container 8423220290471
EAN code packaging 18423220290478
Units packaging 6
Units carton 60
