Ref. 6828K

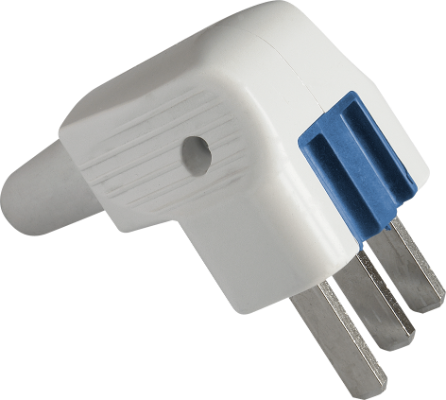

Plug 2P+E, 25A 250V~. White colour
Plug 2P+E, 25A 250V~. White colourFlush. For kitchen.
Common applications: Indoor domestic / tertiary environment (Interior of home, offices, shops, etc.)
Add to my downloads
Added to my downloads
Add to my downloads
Added to my downloads
Complementary products
Features
Material Thermoset
Type Plug for kitchen
No. of poles 2P + T
Type of terminal connection Screw connection
Nominal current 25A
Grounding Side spike
Nominal current 25A
Nominal voltage 250V~
Color White
Technical data and regulation
Technical data
Fire resistance (GWEPT) 650/750 ºC
Heat resistance (Ball pressure) 70/125 ºC
Free of halogens Yes
Regulations
CE marking Yes
CMim marking Yes
According to Regulations UNE/EN UNE-20315-1-1:2017; UNE-20315-1-2:2017
According to REBT Yes
In accordance with the Regulation (EU) 2023/988 of the European Parliament and of the Council on general product safey Yes
Sustainability
According to European Directive 2011/65/UE (RoHS) Yes
According to European Directive 2012/19/UE (RAEE2) Yes
According to Regulations (RoHS) UNE-EN IEC 63000:2022
Logistics and packaging
Unit EAN code 8423220235595
EAN code container 8423220235571
EAN code packaging 18423220235578
Units packaging 10
Units carton 160
Pallet Units 5600
Packaging Measurements cm 14,5x19x8,8
Packaging Measures cm 59,5x20x37,5
Unit weight (g) 81
Container Weight (Kg) 0,86
Packaging Weight (Kg) 14,29
Tariff code 85366990
