Ref. 8004F

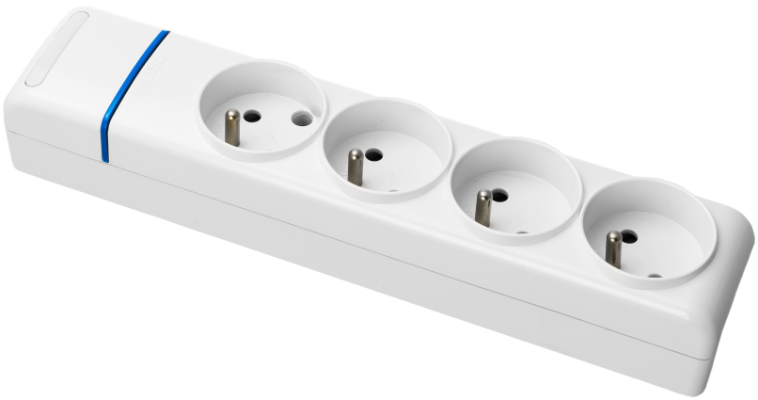

Multiple socket of 4 sockets 2P+E, (French system) 16A 250V~.MÁX. 3680W
Multiple socket of 4 sockets 2P+E, (French system) 16A 250V~. MAX. 3680W. 850º C GWT. White colour. Easy connection access. Inputs for 7x12, 10x16, 10x20 and 12x12mm mini-trunking. Quick and easy removal lid. with holes for fixing by screws to the wall and orifice for fixing by means of flanges to tubes. . includes rubber grommet for cable and cover for mini trunking. Made of Polycarbonate. Serie L`ION.
Common applications: Indoor domestic / tertiary environment (Interior of home, offices, shops, etc.)
Add to my downloads
Added to my downloads
Add to my downloads
Added to my downloads
Complementary products
Features
Type Multiple base
No. of bases 4
Basic characteristics 2P+E, 16A 250V~
Maximum power 3.680 W
Terminal system Screw connection
Mini trunking input Yes, for 7x12, 10x16, 10x20 and 12x12
Possibility of using hanger Yes
Possibility of using KIT-DIN35 Yes
Wall fixing holes Yes
Technical data and regulation
Technical data
Protection Degree (IP) IP20
Fire resistance (GWEPT) 850 ºC
Heat resistance (Ball pressure) 125 ºC
Ambient operating temperature -5 ºC ; +60 ºC
Free of halogens Yes
Regulations
CE marking Yes
CMim marking Yes
According to Regulations NF C61-314
According to Regulations UNE/EN UNE-20315-1-1:2017; UNE-20315-1-2:2017
According to REBT Yes
In accordance with the Regulation (EU) 2023/988 of the European Parliament and of the Council on general product safey Yes
Sustainability
According to European Directive 2011/65/UE (RoHS) Yes
According to European Directive 2012/19/UE (RAEE2) Yes
According to Regulations (RoHS) UNE-EN IEC 63000:2022
Logistics and packaging
Unit EAN code 8423220225954
EAN code container 8423220225718
EAN code packaging 18423220225715
Units packaging 14
Units carton 56
Pallet Units 1960
Packaging Measurements cm 29x19x18
Packaging Measures cm 59,5x20x37,5
Unit weight (g) 214
Container Weight (Kg) 3,57
Packaging Weight (Kg) 13,12
Tariff code 85366990
