Ref. 5108PF
Flush distribution board, 8 modules. Fume door.
Flush distribution board, 8 modules. Fume door.White frame. Flush dimensions 205 x 233 x 72 mm.
Common applications: Indoor domestic / tertiary environment (Interior of home, offices, shops, etc.)
Add to my downloads
Added to my downloads
Add to my downloads
Added to my downloads
Complementary products
Features
Enclosure type Distribution
Installation method Flush in work
Use Domestic / Tertiary
Location type Inside
No. Modules (18 mm) 8
Modules per row 8
Metallic DIN profile Yes
Dimensions gap (mm) (Width x Height x Depth) 205x233x72

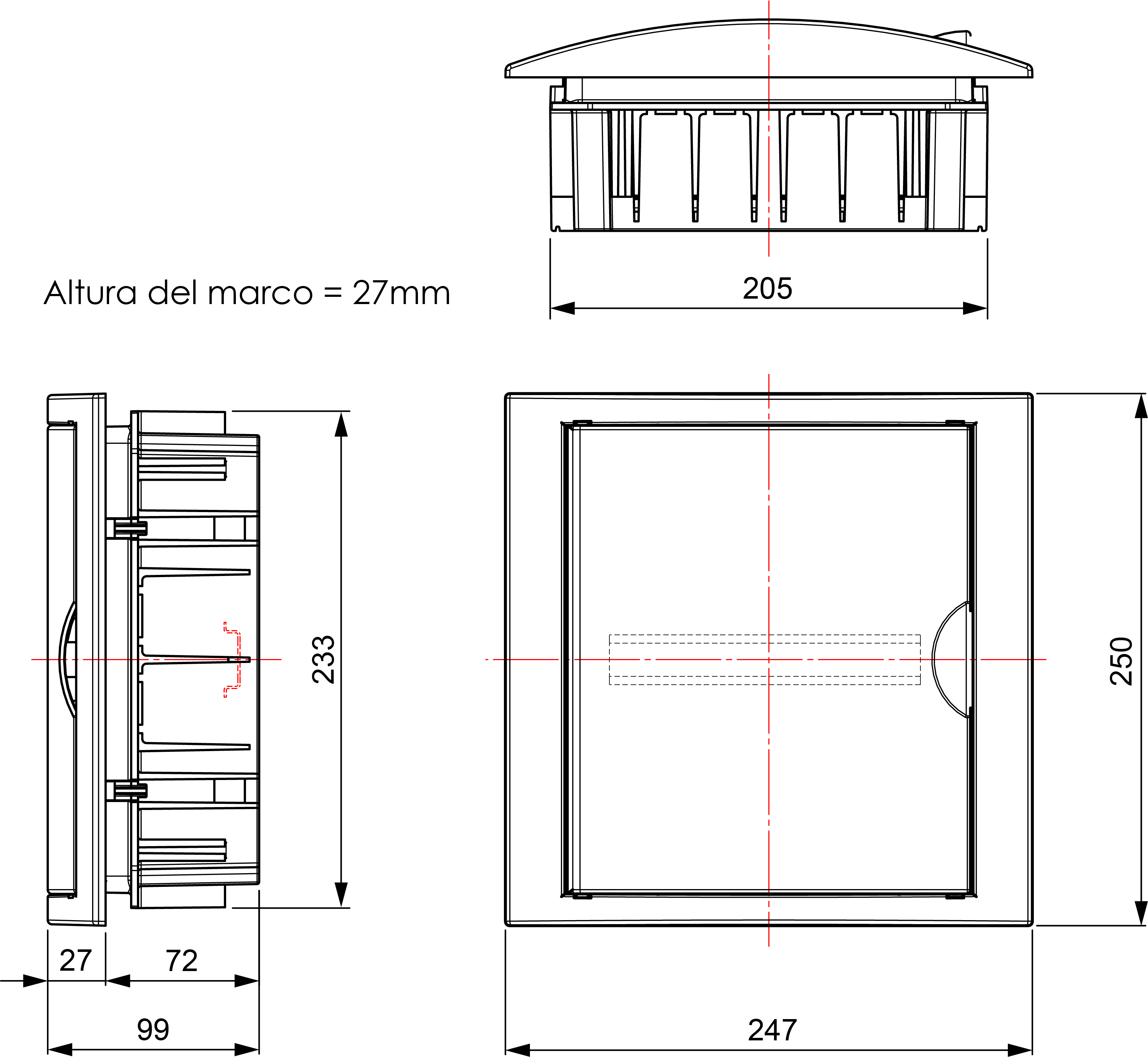

Dimensions (mm) See sketch
Case material Insulation
Frame and door material Insulation
Case color Black
Cap color White
Door color Fume
Door opening Horizontal
Battens included No
Ticket type Unfathomable
Fixation System (For surface) Inside
Sealable Not
Linkable Vertically and horizontally
Lid closure system Metal screw
Door closing system A Pressure
Reversible door Yes
Possibility of mounting strips Yes (not included)
Possibility of putting lock Key
Separate covers or doors on the boxes Yes
Possibility of mounting DIN rail Yes (included)
Additional dimensions (mm) See sketch
Technical data and regulation
Technical data
Protection Degree (IP) IP40
Protection Degree (IK) IK08
Insulation class Class II
Fire resistance (GWEPT) 650 ºC
Heat resistance (Ball pressure) 70 ºC
Installation temperature -5 ºC -> +60 ºC
Ambient operating temperature -5 ºC ; +60 ºC
Work stress 400 Vac-1000 Vdc
Free of halogens Yes
Regulations
CE marking Yes
UK marking Yes
CMim marking Yes
According to Regulations UNE/EN UNE-EN 62208:2012
According to REBT Yes
According to European Directive 2014/35 / EU. Low voltage directive Yes
Sustainability
According to European Directive 2011/65/UE (RoHS) The Directive 2011/65/EU (RoHS II) is not applicable as it does not correspond to the definition of Electrical and Electronical Equipment (EEE) as per article 3.1
According to European Directive 2012/19/UE (RAEE2) Not applicable because it does not meet the definition of Electrical and Electronic Equipment (EEE) as described in Article 3.1(a) of Directive 2012/19/EU (WEEE II).
Logistics and packaging
Unit EAN code 8423220039551
EAN code container 8423220039551
EAN code packaging 18423220039558
Units packaging 1
Units carton 12
Pallet Units 180
Packaging Measurements cm 24,8x25,3x10,3
Packaging Measures cm 57,8x46x38,5
Unit weight (g) 722
Container Weight (Kg) 0,85
Packaging Weight (Kg) 11,12
Tariff code 85371098
