Ref. 5261PF
Surface distribution board, 42 modules. Fume door.
Surface distribution board, 42 modules. Fume door.3 rows. White box and frame. External dimensions 362 x 542 x 115 mm.
Common applications: Indoor domestic / tertiary environment (Interior of home, offices, shops, etc.)
Add to my downloads
Added to my downloads
Add to my downloads
Added to my downloads
Complementary products
Features
Enclosure type Distribution
Installation method Surface
Use Domestic / Tertiary
Location type Inside
No. Modules (18 mm) 42
Modules per row 14
Metallic DIN profile Yes
Dimensions outside (mm) (width x height x depth) 362x542x115

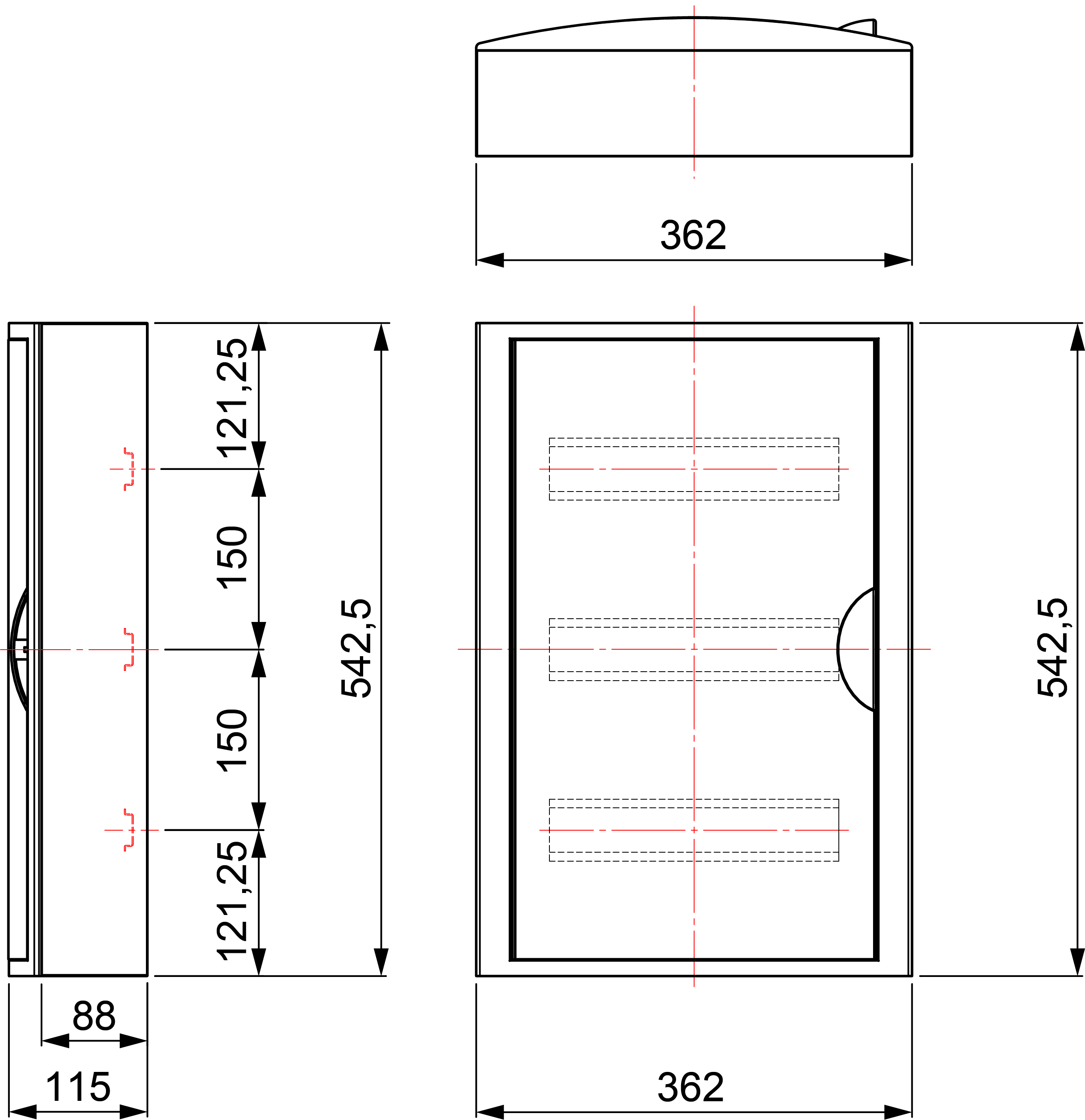

Dimensions (mm) See sketch
Case material Insulation
Frame and door material Insulation
Case color White
Cap color White
Door color Fume
Door opening Horizontal
Battens included No
Ticket type Pre-punched
Fixation System (For surface) Inside
Sealable Not
Lid closure system Metal screw
Door closing system A Pressure
Reversible door Yes
Possibility of mounting strips Yes (not included)
Possibility of putting lock Key
Separate covers or doors on the boxes Yes
Possibility of mounting DIN rail Yes (included)
Additional dimensions (mm) See sketch
Technical data and regulation
Technical data
Protection Degree (IP) IP40
Protection Degree (IK) IK08
Insulation class Class II
Fire resistance (GWEPT) 650 ºC
Heat resistance (Ball pressure) 70 ºC
Installation temperature -5 ºC -> +60 ºC
Ambient operating temperature -5 ºC ; +60 ºC
Work stress <1000 Vac ; 1500 Vdc
Free of halogens Yes
Regulations
CE marking Yes
UK marking Yes
CMim marking Yes
According to Regulations UNE/EN UNE-EN 62208:2012
According to REBT Yes
According to European Directive 2014/35 / EU. Low voltage directive Yes
Sustainability
According to European Directive 2011/65/UE (RoHS) The Directive 2011/65/EU (RoHS II) is not applicable as it does not correspond to the definition of Electrical and Electronical Equipment (EEE) as per article 3.1
According to European Directive 2012/19/UE (RAEE2) Not applicable because it does not meet the definition of Electrical and Electronic Equipment (EEE) as described in Article 3.1(a) of Directive 2012/19/EU (WEEE II).
Logistics and packaging
Unit EAN code 8423220009394
EAN code container 8423220009394
EAN code packaging 18423220009391
Units packaging 1
Units carton 4
Pallet Units 60
Packaging Measurements cm 54,6x11,8x36,4
Packaging Measures cm 59,5x48x39,5
Unit weight (g) 2504
Container Weight (Kg) 2,82
Packaging Weight (Kg) 12,35
Tariff code 85371098
