Ref. 5505

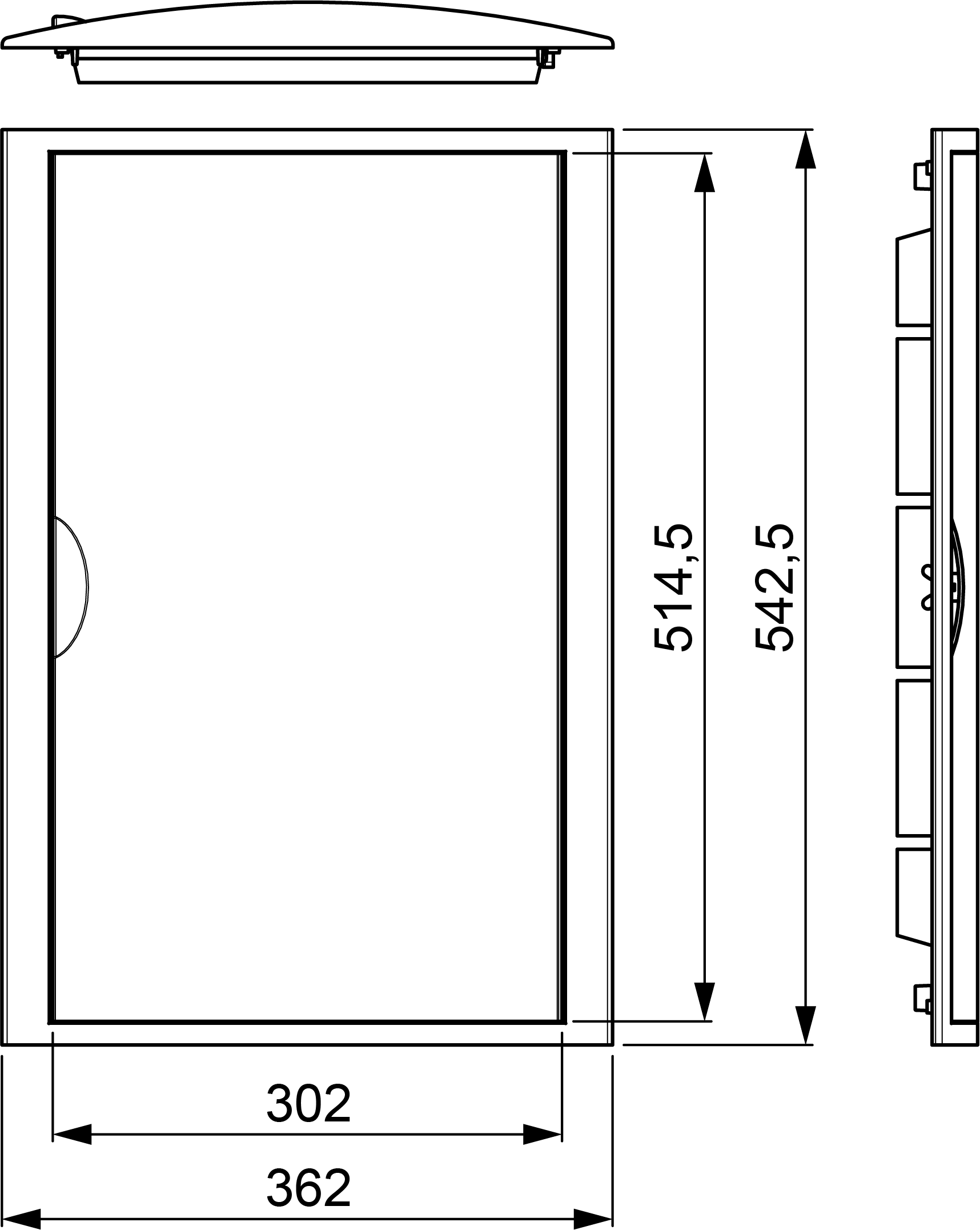

Frame and door for connection box.
Frame and door for connection box.White thermoplastic material. For replacement in refs 5503, 5504, 5507 and 5508.
Common applications: Indoor domestic / tertiary environment (Interior of home, offices, shops, etc.)
Add to my downloads
Added to my downloads
Add to my downloads
Added to my downloads
Features
Installation method Flush in work
Use Domestic / Tertiary
Location type Inside
Frame and door material Insulation
Door color White
Door opening Horizontal
Door closing system Handle
Possibility of putting lock Key
Technical data and regulation
Technical data
Impact shock resistance Medium
Insulation class Class II
Fire resistance (GWEPT) 650 ºC
Free of halogens Yes
Regulations
CE marking Yes
UK marking Yes
CMim marking Yes
According to Regulations UNE/EN UNE-EN 60670-1:2022
UNE- EN 60670-22:2007
UNE- EN 60670-22:2007
According to REBT Yes
According to European Directive 2014/35 / EU. Low voltage directive Yes
Sustainability
According to European Directive 2011/65/UE (RoHS) The Directive 2011/65/EU (RoHS II) is not applicable as it does not correspond to the definition of Electrical and Electronical Equipment (EEE) as per article 3.1
According to European Directive 2012/19/UE (RAEE2) Not applicable because it does not meet the definition of Electrical and Electronic Equipment (EEE) as described in Article 3.1(a) of Directive 2012/19/EU (WEEE II).
Logistics and packaging
Unit EAN code 8423220009097
EAN code container 8423220009097
EAN code packaging 18423220009094
Units packaging 1
Units carton 12
Pallet Units 180
Packaging Measures cm 59,5x59,5x39,5
Unit weight (g) 845
Container Weight (Kg) 0,86
Packaging Weight (Kg) 11,43
Tariff code 73269098
