Ref. 8881HGW
Flush distribution box in hollow partition of 16 modules + 4 sealables. Fixing system using metal claws Ref. G-MP28.
Flush distribution box in hollow partition of 16 modules + 4 sealables. Fixing system using metal claws Ref. G-MP28.White frame and door. Flush dimensions 450 x 222 x 72 mm.
Common applications: Indoor domestic / tertiary environment (Interior of home, offices, shops, etc.)
Add to my downloads
Added to my downloads
Add to my downloads
Added to my downloads
Complementary products
Features
Enclosure type Distribution with sealable compartment
Installation method For hollow wall.
Use Domestic / Tertiary
Location type Inside
No. Modules (18 mm) 16+4
Modules per row 16+4
Metallic DIN profile Yes
Dimensions gap (mm) (Width x Height x Depth) 450x222x72
Dimensions (mm) See sketch
Case material Insulation
Frame and door material Insulation
Case color Blue
Door color White
Door opening Vertical
Battens included No
Ticket type Unfathomable
Linkable Vertically and horizontally
Lid closure system Metal screw
Door closing system Handle
Reversible door Yes
Possibility of mounting strips Yes (not included)
Possibility of putting lock Key
Possibility of mounting DIN rail Yes (included)

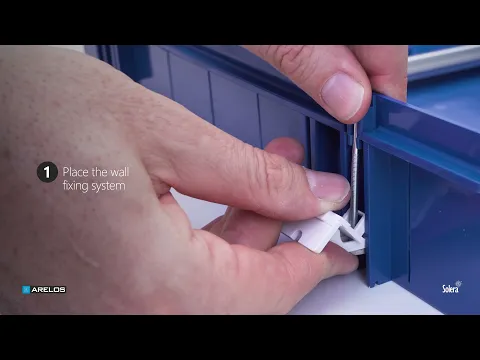

Fixing system to the hollow partition. Metal claw
Additional dimensions (mm) See sketch
Technical data and regulation
Technical data
Protection Degree (IP) IP40
Protection Degree (IK) IK08
Impact shock resistance Medium
Insulation class Class II
Fire resistance (GWEPT) 850 ºC
Heat resistance (Ball pressure) 70 ºC
Ambient operating temperature -5 ºC ; +60 ºC
Work stress <1000 Vac ; 1500 Vdc
Free of halogens Yes
Regulations
CE marking Yes
UK marking Yes
CMim marking Yes
According to Regulations UNE/EN UNE-EN 62208:2012
According to REBT Yes
According to European Directive 2014/35 / EU. Low voltage directive Yes
Sustainability
According to European Directive 2011/65/UE (RoHS) The Directive 2011/65/EU (RoHS II) is not applicable as it does not correspond to the definition of Electrical and Electronical Equipment (EEE) as per article 3.1
According to European Directive 2012/19/UE (RAEE2) Not applicable because it does not meet the definition of Electrical and Electronic Equipment (EEE) as described in Article 3.1(a) of Directive 2012/19/EU (WEEE II).
Logistics and packaging
Unit EAN code 8423220092860
EAN code container 8423220092860
EAN code packaging 18423220092867
Units packaging 1
Units carton 10
Pallet Units 150
Packaging Measures cm 59,5x59,5x39,5
Unit weight (g) 1221
Container Weight (Kg) 1,25
Packaging Weight (Kg) 13,59
Tariff code 39259010
