5625
CE marking
UK marking
CMim marking
Free of halogens

Ref. 5625

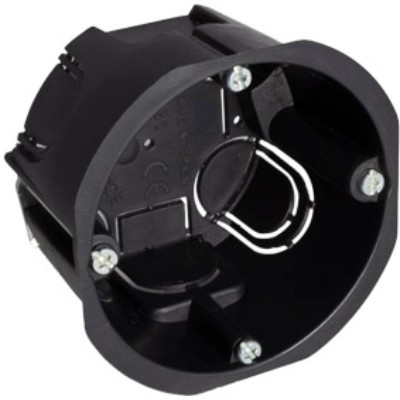

Flush mechanism box in hollow partition. For 1 module. Fixing with metal claws.

Flush mechanism box in hollow partition. For 1 module. Fixing with metal claws.Flush dimensions Ø 68 x 46 mm. 4 inputs for tube Ø20 mm, and 2 inputs for tube Ø25 mm. Use Ø 68 mm cutter. Black colour.


Common applications: Indoor domestic / tertiary environment (Interior of home, offices, shops, etc.)

Add to zip Added to zip
Add to my downloads
Added to my downloads
More info
Download product sheet
Select the information you want to export:
Add to zip Added to zip
Add to my downloads
Added to my downloads
More info

Complementary products

RE6/10N 5625E

Features

Enclosure type Mechanism box
Installation method For hollow wall.
Use Domestic / Tertiary
Location type Inside
Dimensions inside (mm) (Width x Height x Depth) Ø 68x46
Case material Insulation
Case color Black
Ticket type Unfathomable
No. of inlets and size (mm) 4xØ20, 2xØ25,
Fixing system to the hollow partition. Short metal claw
Lightening torque 0.30 - 0.40 Nm
sketch

Technical data and regulation

Technical data

Fire resistance (GWEPT) 850 ºC
Ambient operating temperature -5 ºC ; +60 ºC
Work stress 400 Vac
Free of halogens Yes

Regulations

CE marking Yes
UK marking Yes
CMim marking Yes
According to Regulations UNE/EN UNE-EN 60670-1:2022
UNE- EN 60670-22:2007
According to REBT Yes
According to European Directive 2014/35 / EU. Low voltage directive Yes

Sustainability

According to European Directive 2011/65/UE (RoHS) The Directive 2011/65/EU (RoHS II) is not applicable as it does not correspond to the definition of Electrical and Electronical Equipment (EEE) as per article 3.1
According to European Directive 2012/19/UE (RAEE2) Not applicable because it does not meet the definition of Electrical and Electronic Equipment (EEE) as described in Article 3.1(a) of Directive 2012/19/EU (WEEE II).

Logistics and packaging

Unit EAN code 8423220236592
EAN code container 8423220007215
EAN code packaging 18423220007212
Units packaging 20
Units carton 520
Pallet Units 7800
Packaging Measures cm 59,5x59,5x39,5
Unit weight (g) 31
Container Weight (Kg) 0,63
Packaging Weight (Kg) 17,48
Tariff code 39259010
