Ref. 5625A
Flush mechanism box in hollow partition. For 1 module. Fixing with metal claws.
Flush mechanism box in hollow partition. For 1 module. Fixing with metal claws.Flush dimensions Ø 68x60 mm. 4 inputs for tube Ø 20 mm 2 inputs for tube Ø 25 mm . Use Ø 68 mm cutter. Blue colour.
Common applications: Indoor domestic / tertiary environment (Interior of home, offices, shops, etc.)
Add to my downloads
Added to my downloads
Add to my downloads
Added to my downloads
Complementary products
Features
Enclosure type Mechanism box
Installation method For hollow wall.
Use Domestic / Tertiary
Location type Inside

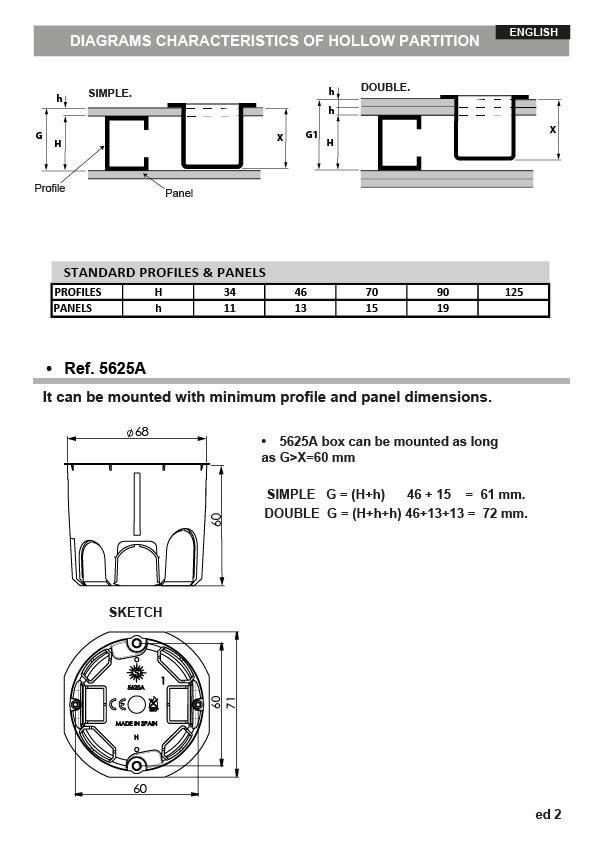

Dimensions gap (mm) (Width x Height x Depth) Ø 68x60 mm
Case material Insulation
Case color Blue
Ticket type Unfathomable
No. of inlets and size (mm) 4 entradas para tubo ø 20mm y 2 entradas para tubo ø 25mm
Linkable Vertically and horizontally
Fixing system to the hollow partition. Metal claw
Lightening torque 0.30 - 0.40 Nm
Technical data and regulation
Technical data
Fire resistance (GWEPT) 850 ºC
Ambient operating temperature -5 ºC ; +60 ºC
Work stress 400 Vac
Free of halogens Yes
Regulations
CE marking Yes
UK marking Yes
CMim marking Yes
According to Regulations UNE/EN UNE-EN 60670-1:2022
UNE- EN 60670-22:2007
UNE- EN 60670-22:2007
According to REBT Yes
CB certificate Yes
According to European Directive 2014/35 / EU. Low voltage directive Yes
Sustainability
According to European Directive 2011/65/UE (RoHS) The Directive 2011/65/EU (RoHS II) is not applicable as it does not correspond to the definition of Electrical and Electronical Equipment (EEE) as per article 3.1
According to European Directive 2012/19/UE (RAEE2) Not applicable because it does not meet the definition of Electrical and Electronic Equipment (EEE) as described in Article 3.1(a) of Directive 2012/19/EU (WEEE II).
Logistics and packaging
Unit EAN code 8423220245686
EAN code container 8423220245686
Units packaging 10
Units carton 350
Pallet Units 7800
Tariff code 85366990
Documentation and downloads
Mechanism boxes for dry wall, Blue range (Solera)
Mounting mechanism boxes for dry wall (Solera)
