Ref. 5925GW

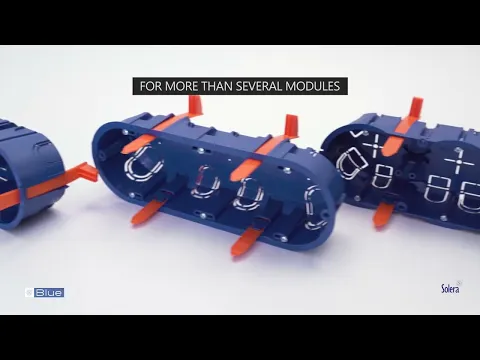

Flush mechanism box in hollow partition. For 4 modules. Nylon ties fixing system.
Flush mechanism box in hollow partition. For 4 modules. Nylon ties fixing system.Flush dimensions 281 x 68 x 46 mm. 8 inputs for tube Ø 25-20 mm. 4 inputs for tube Ø 20 mm. 4 inputs for tube Ø 16 mm. Use cutter Ø 68 mm. Blue colour.
Common applications: Indoor domestic / tertiary environment (Interior of home, offices, shops, etc.)
Add to my downloads
Added to my downloads
Add to my downloads
Added to my downloads
Complementary products
Features
Enclosure type Mechanism box
Installation method For hollow wall.
Use Domestic / Tertiary
Location type Inside
No. Modules (18 mm) 4
Dimensions inside (mm) (Width x Height x Depth) 281x68x46
Case material Insulation
Case color Blue
Battens included No
Ticket type Unfathomable
No. of inlets and size (mm) 8xØ25-20, 4xØ20, 4xØ16
Alignment marks Alignment Marks
Fixing system to the hollow partition. Nylon flange
Lightening torque 0.30 - 0.40 Nm
Technical data and regulation
Technical data
Fire resistance (GWEPT) 850 ºC
Ambient operating temperature -5 ºC ; +60 ºC
Work stress 400 Vac
Free of halogens Yes
Regulations
CE marking Yes
UK marking Yes
CMim marking Yes
According to Regulations UNE/EN UNE-EN 60670-1:2022
UNE- EN 60670-22:2007
UNE- EN 60670-22:2007
According to REBT Yes
According to European Directive 2014/35 / EU. Low voltage directive Yes
Sustainability
According to European Directive 2011/65/UE (RoHS) The Directive 2011/65/EU (RoHS II) is not applicable as it does not correspond to the definition of Electrical and Electronical Equipment (EEE) as per article 3.1
According to European Directive 2012/19/UE (RAEE2) Not applicable because it does not meet the definition of Electrical and Electronic Equipment (EEE) as described in Article 3.1(a) of Directive 2012/19/EU (WEEE II).
Logistics and packaging
Unit EAN code 8423220236745
EAN code container 8423220217270
EAN code packaging 18423220217277
Units packaging 4
Units carton 12
Pallet Units 576
Packaging Measures cm 37,5x20x30
Unit weight (g) 92
Container Weight (Kg) 0,37
Packaging Weight (Kg) 1,44
Tariff code 39259010
