Ref. MPB2E28NG

Flush distribution box of 28 modules. With metallic frame and door, Graphite colour

Flush distribution box of 28 modules. With metallic frame and door,Graphite colour.2 rows. Grey box and white cover, thermoplastic material. Flush dimensions 333 x 435 x 88 mm. Thermal dissipation 33W.

Common applications: Indoor domestic / tertiary environment (Interior of home, offices, shops, etc.)

More info
More info

Complementary products


Enclosure type Distribution
Installation method Flush in work
Use Domestic / Tertiary
Location type Inside
No. Modules (18 mm) 28
Modules per row 14
Removable frame Yes
Metallic DIN profile Yes
Dimensions outside (mm) (width x height x depth) 362x462x88
Dimensions gap (mm) (Width x Height x Depth) 333 x 435 x 88
Case material Insulation
Frame and door material Metallic stainless
Case color Grey (RAL7035)
Cap color White
Door color Graphite
Door opening Horizontal
Battens included Yes (Screw terminals)
Strip type Neutral + Ground
No. of terminals and size 13x6 mm2 + 4x16 mm2+ 5x6 mm2
Ticket type Unfathomable
Sealable Yes
Linkable Vertically and horizontally
Lid closure system 1/4 turn screw without spring
Door closing system Handle
Reversible door Yes
Possibility of mounting strips Yes (included)
Possibility of mounting with key / padlock Key
Possibility of mounting plate Yes (not included)
Possibility of mounting DIN rail Yes (included)
Alignment marks Both
Possibility of mounting .PL-MP28 plate Yes (not included)
With grommets at the bottom to fix the tubes or cables with cable ties, quantity Yes
With recessed hole marking system Yes

Technical data and regulation

Technical data

Protection Degree (IP) IP40
Protection Degree (IK) IK07
Insulation class Class II
Fire resistance (GWT) 650ºC
Heat resistance (Ball pressure) 70ºC
Installation temperature -5ºC -> +60ºC
Work stress <1000 Vca ; 1500 Vcc
Thermal power dissipated 33 W
UV resistance Yes
Free of halogens Yes


CE marking Yes
UK marking Yes
CMim marking Yes
According to Regulations UNE/EN UNE-EN 62208:2012
According to REBT Yes
According to European Directive 2014/35 / EU. Low voltage directive Yes


According to European Directive 2011/65/UE (RoHS) The Directive 2011/65/EU (RoHS II) is not applicable as it does not correspond to the definition of Electrical and Electronical Equipment (EEE) as per article 3.1
According to European Directive 2012/19/UE (RAEE2) Not applicable because it does not meet the definition of Electrical and Electronic Equipment (EEE) as described in Article 3.1(a) of Directive 2012/19/EU (WEEE II).

Logistics and packaging

Unit EAN code 8423220246157
EAN code container 8423220246157
EAN code packaging 18423220246154
Units Container 1
Units Packaging 6
Pallet Units 54
Tariff code 85371098

Documentation and downloads

Flush distribution board (Solera)

Flush distribution board (Solera)

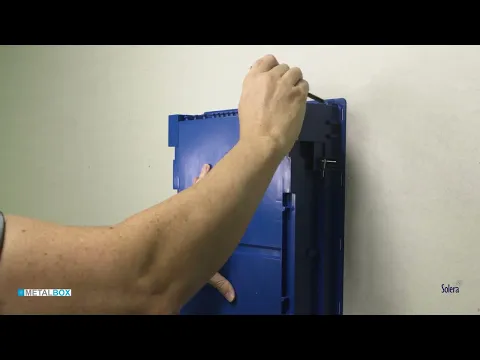

Mounting flush distribution board (Solera)
