Ref. M4S96-1
Surface distribution metal cabinet of 96 modules.
Surface distribution metal cabinet of 96 modules.4 rows x 24 modules. IP30. IK09. White colour. Sheet metal 1 mm. External dimensions 532 x 752 x 155 mm. With 35 mm DIN rail. Class I. Reversible door. Removable chassis. Earth and neutral terminals included.
Common applications: Indoor domestic / tertiary environment (Interior of home, offices, shops, etc.)
Add to my downloads
Added to my downloads
Add to my downloads
Added to my downloads
Complementary products
Features
Enclosure type Distribution
Installation method Surface
Use Domestic / Tertiary
Location type Inside
No. Modules (18 mm) 96
Modules per row 24
Removable frame Yes
Metallic DIN profile Yes

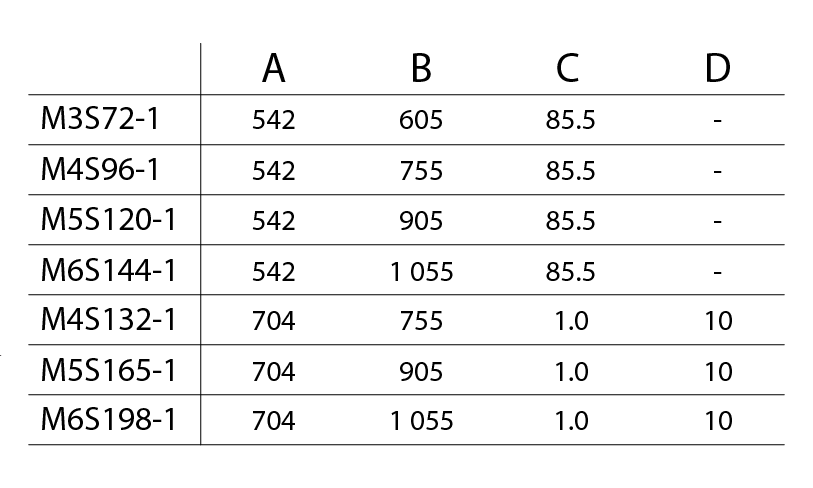

Dimensions outside (mm) (width x height x depth) 532 x 752 x 155
Case material Metallic
Frame and door material Metallic
Case color White
Cap color White
Door color White
Door opening Horizontal
Battens included Yes (Screw terminals)
Strip type Neutral + Ground
No. of terminals and size TT (2x25 mm2 + 43x16 mm2) + N (2x25 mm2 + 23x16 mm2)
Ticket type Unfathomable
Fixation System (For surface) Inside
Sealable Not
Lid closure system 1/4 turn screw without spring
Door closing system Handle
Reversible door Yes
Possibility of mounting strips Yes (included)
Possibility of putting lock Key
Separate covers or doors on the boxes Yes
Possibility of mounting DIN rail Yes (included)
Technical data and regulation
Technical data
Protection Degree (IP) IP30
Protection Degree (IK) IK09
Impact shock resistance Medium
Insulation class Class I
Fire resistance (GWEPT) 650 ºC
Ambient operating temperature -5 ºC ; +60 ºC
Work stress <1000 Vac ; 1500 Vdc
Free of halogens Yes
Regulations
CE marking Yes
UK marking Yes
CMim marking Yes
According to Regulations UNE-EN 62208: 2012
According to Regulations UNE/EN UNE-EN 61439-1: 2021
UNE-EN 61439-3: 2012
UNE-EN 61439-4: 2013
UNE-EN 61439-3: 2012
UNE-EN 61439-4: 2013
According to REBT Yes
According to European Directive 2014/35 / EU. Low voltage directive Yes
Sustainability
According to European Directive 2011/65/UE (RoHS) The Directive 2011/65/EU (RoHS II) is not applicable as it does not correspond to the definition of Electrical and Electronical Equipment (EEE) as per article 3.1
According to European Directive 2012/19/UE (RAEE2) Not applicable because it does not meet the definition of Electrical and Electronic Equipment (EEE) as described in Article 3.1(a) of Directive 2012/19/EU (WEEE II).
Logistics and packaging
Unit EAN code 8423220081321
EAN code container 8423220081321
EAN code packaging 18423220081328
Units packaging 0
Units carton 1
Pallet Units 16
Packaging Measures cm 80x15x59
Packaging Weight (Kg) 16,32
Tariff code 85371098
